FOCIS PRO SC/FC UPC & APC Inspection and Analysis Kit



KGP Logistics' processes enable accurate and fast distribution

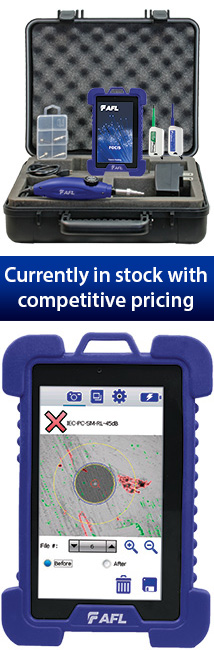

The NOYES family of FOCIS PRO automatic fiber inspection solutions provides network personnel with the capability to analyze and document fiber connector cleanliness and integrity. The FOCIS PRO SC/FC UPC & APC Inspection and Analysis Kit bundles everything network personnel need for today’s SC/FC connector environment. This application-specific kit includes a DFD1 Touchscreen Tablet equipped with AFL’s powerful SimpleView PRO analysis software, a DFS1 Digital Fiberscope, and probe adapter tips for UPC and APC jumper (male) and bulkhead (female) connectors.



Features

  • Automatic Analysis of fiber end-face
  • Built-in IEC, AT&T-TP-76461 and user-defined limits
  • 1.3 μm/pixel analysis resolution
  • 0.5 μm visual detection capability
  • 1.0 μm optical system resolution
  • 400 μm x 350 μm field of view
  • Paired fiber images for comparing before/after, input/output, etc.
  • Integrated focus and snapshot controls
  • Capture, save, review and share images

Applications

  • Automatic Analysis of PC/UPC and APC connectors
  • Analyze-Clean-Analyze-Document workflow
  • Document “as-built” or “as found” condition of connectors



Product Data Sheet
